CF 1 binder
Legume harvesting as done by hand

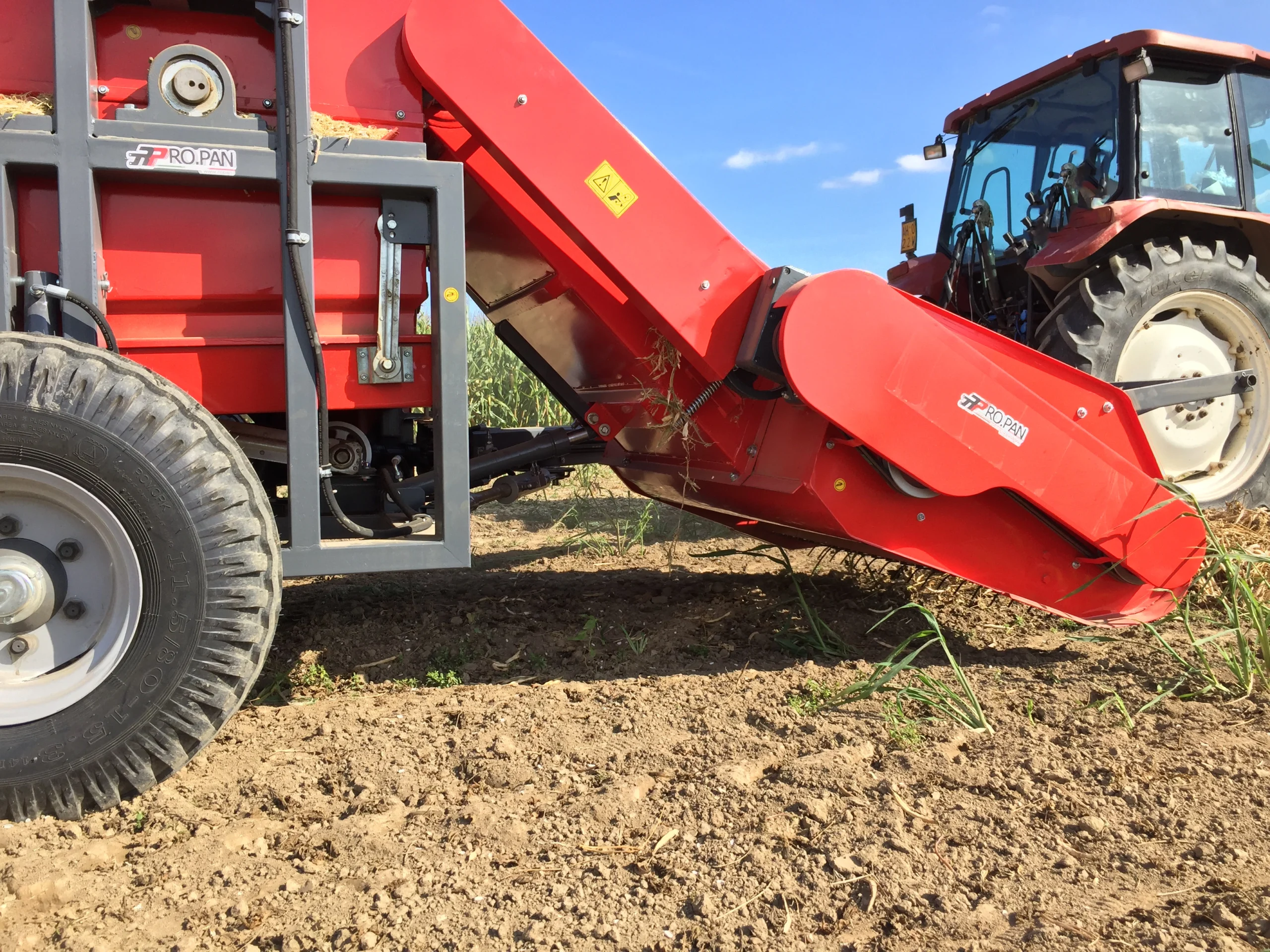

The CF1 legume harvester is a trailed machine, driven by PTO through a cardan shaft, designed for harvesting dry legumes including beans, which due to their break-sensitive skin, show high difficulty during harvesting operations.
Primarily the CF1 harvester is designed for harvesting but can be adapted for harvesting any legume by simply replacing the rear screen grid.
Collected products
Beans
Chickpeas
Peas
Lentils
Technical Data
|
|
UM |
CF1 |
|
LENGTH |
MM |
4900 |
|
WIDTH |
MM |
2200 |
|
HEIGHT |
MM |
2750 |
|
WEIGHT |
KG |
2200 |
|
HOPPER CAPACITY |
LT |
1200 |
|
CARRIAGE |
MM |
1600 |
|
PICKUP WIDTH |
MM |
1600 |
|
PALE BEATERS |
N° |
81 |
|
ABILITY TO WORK |
TON/HOUR |
2,0 |
|
TIRE SIZE |
11.5/80-15.3 |
|
|
MINIMUM POWER REQUIREMENT |
CV |
70 |
Product cleaning screen
Tipping hopper
Inspectable hopper
